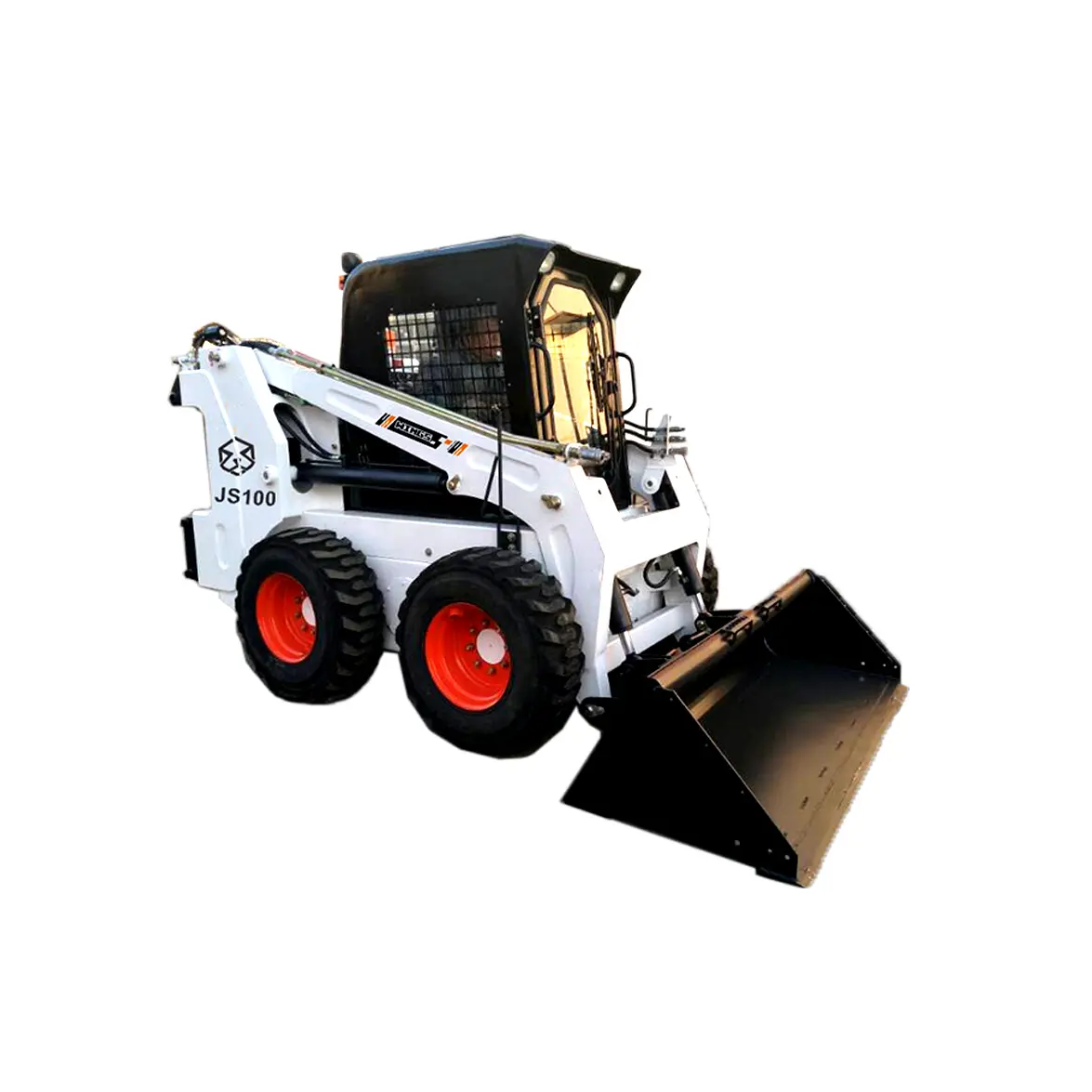

Cheap WINGS JS100 - Wheeled Skid Steer Loader Manufacturer, Factories

The JS100 skid steer boasts a 74.9kW Weichai engine and 1.2T payload, featuring 360Â° rotation, high-flow hydraulics, and cold-start capability. Its climate-controlled cab delivers unmatched precision for urban construction, road maintenance, and industrial material handling operations. Â

Send Inquiry

Product Description

Key Features

Model: JS100 (1.2T Wheeled Skid Steer Loader)

Total Weight: 3,600kg

Bucket Capacity: 0.55m³

Engine: Weichai WP4.1G engine, 74.9kw turbo-charged power.

Power System: Rexroth dual-speed pump/motor ensures dynamic adaptation for heavy loads.

Control Precision: Eaton pilot valves enable 0.3-second hydraulic response.

Professional Applications

Material Handling in Mining: Handles rock fragments with reinforced bucket for continuous quarry operations.
Warehouse Logistics: Streamlines pallet loading at 150 units/hour with 270° visibility design.
Snow Removal: Equipped with snow blade and low-temperature start-up features for harsh winters.

Main Parameters

Technical Specification
Performance	Rated Operating Capacity	1200 KG
	Tipping Load	2400 KG
	Bucket Capacity	0.55 m³
	Operating Weight	3600 KG
	Max. Travel Speed	12 km/h
	Hydraulic Pump Flow	88/122 L/min
	Overall Dimensions	370018802160 mm
Engine	Brand / Model	WEICHAI WP4.1G
	Net Power	74.9 KW / 2200 rpm
	Type	4 Cylinder, Water cooled, 4 stroke
	Displacement	4.1 L
Standard Configuration	Luxurious Enclosed Cab & Hydraulic Joystick Controls
	Preheating Assist System For Extreme Cold
	Auxiliary Hydraulic Couplers

Operational Advantages

Versatility: Seamlessly transitions between buckets, augers, and forks for farms and urban construction.

Reliability: Engineered with reinforced structures for sustained high-intensity work cycles.

Efficiency: Rapid-response hydraulic systems and global parts availability ensure minimal downtime.

Command agility with JS100, the compact skid steer loader engineered for multi-attachment precision and space-defying productivity. Transform narrow worksites into power hubs.

Frequently Asked Questions

1. What is the rated operating capacity of the JS100? The JS100 wheeled skid steer loader has a rated operating capacity of 1,200kg and a tipping load of 2,400kg.

2. Can this machine operate in extremely cold climates? Yes, it comes standard with a preheating assist system designed specifically for reliable start-up and operation in extreme cold weather.

3. What kind of engine and hydraulic system does it use? It is powered by a high-performance Weichai WP4.1G turbo engine (74.9kW) and features a Rexroth dual-speed pump system for superior power adaptation.

4. What attachments are compatible with this loader? The machine is highly versatile and can be equipped with various attachments including standard buckets, augers, pallet forks, and snow blades.

5. Is the operator cabin comfortable for long hours? Yes, the JS100 features a luxurious enclosed cab with hydraulic joystick controls to ensure precision and operator comfort during long shifts.

6. What is the travel speed and mobility like? The loader reaches a maximum travel speed of 12km/h and is designed with a compact wheelbase (1020mm) for excellent maneuverability in tight spaces.
