Key Features
Model & Weight

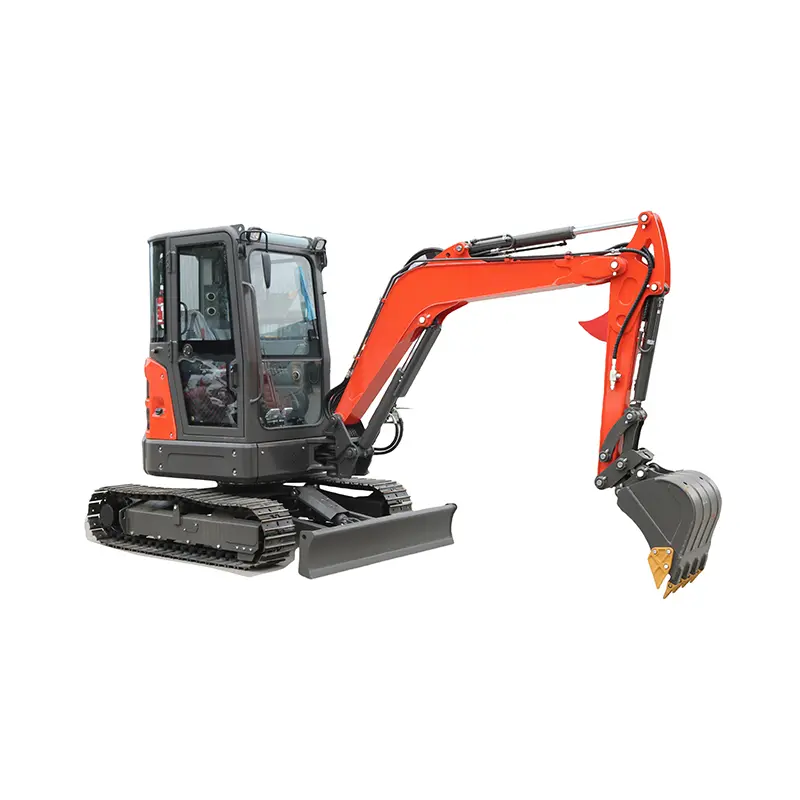

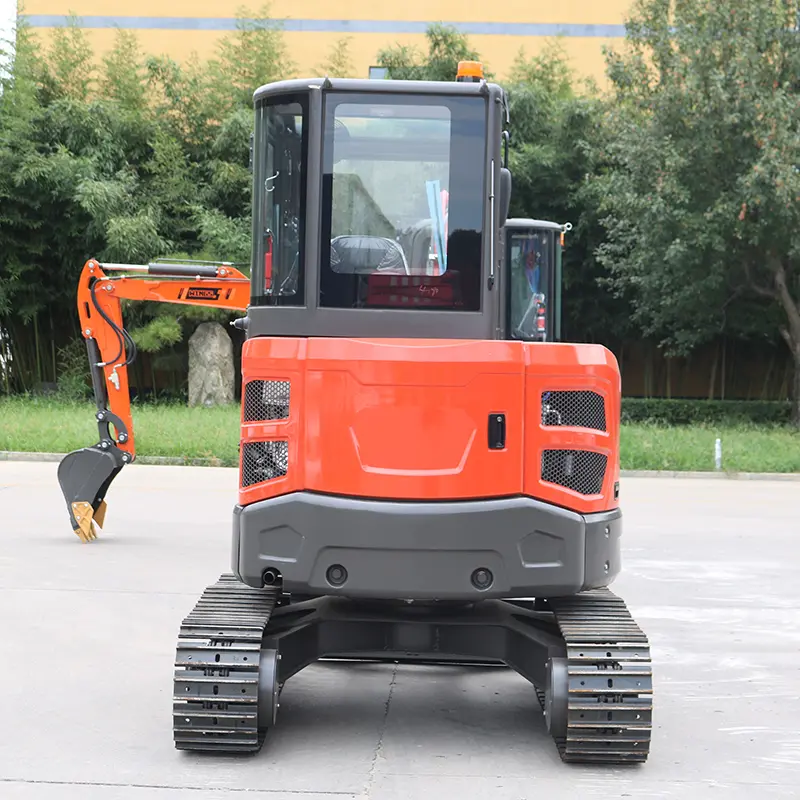

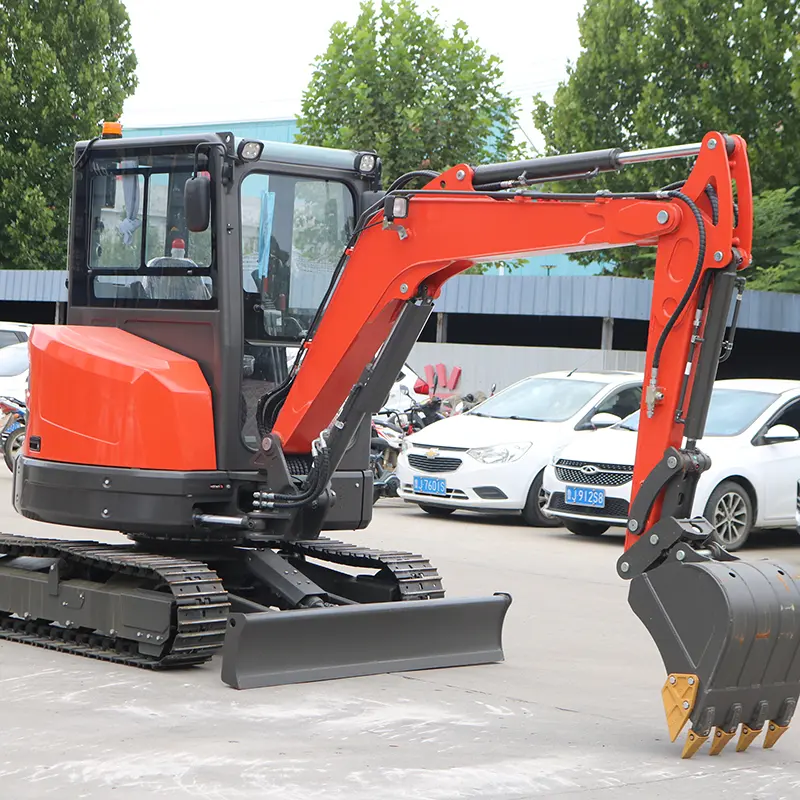

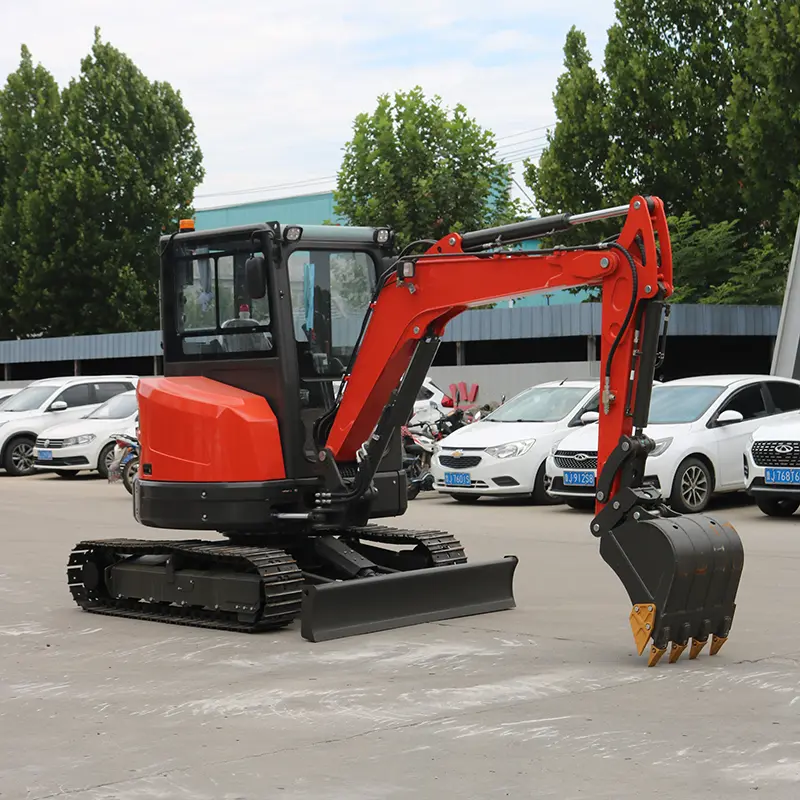

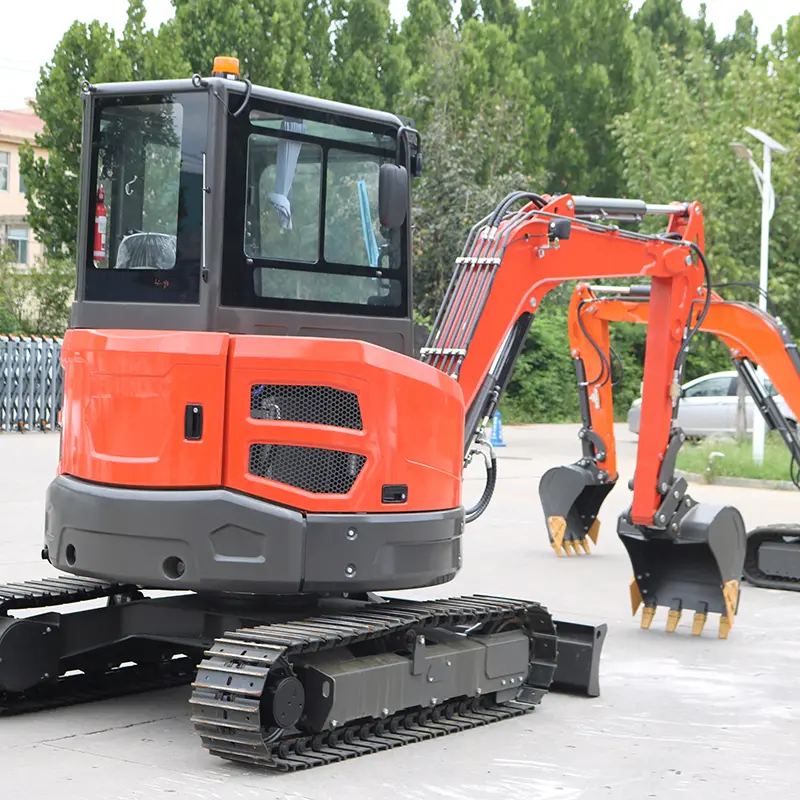

Mini Crawler Excavator SH35, Operating Weight: 3,800kg.
Bucket & Engine
0.12m³ bucket capacity powered by a Kubota D1703 engine.
All-Weather Cabin
Fully enclosed cabin with air conditioning, ergonomic controls, and sound insulation.
Versatile Tracks
Equipped with rubber tracks for urban areas and steel tracks for rough terrain.
🏗️
Professional Applications
- Rural and Forestry Work: High-performance hydraulics for vegetation clearing, trenching, and farmland preparation.
- Demolition and Site Preparation: Robust design for small-scale demolition, grading, and efficient site clearing.
- Utility and Pipeline Projects: Optimized for precise trenching, drilling, and pipe installation in confined spaces.
📊
Main Parameters
| Technical Specifications - SH35 |
| Performance |
Bucket Capacity |
m³ |
0.12 |
| Total Weight |
kg |
3800 |
| Swing Speed |
rpm |
1-11 |
| Max. Bucket Digging Force |
KN |
30 |
| Engine Model |
- |
KUBOTA D1703 |
| Power/Speed |
KW/rpm |
18.2/2200 |
| Dimensions |
Length*Width*Height |
mm |
4915x1755x2525 |
| Cabin Height |
mm |
2290 |
| Axle Base |
mm |
1670 |
| Ground Clearance |
mm |
295 |
| Working Range |
Max. Digging Height |
mm |
4540 |
| Max. Dumping Height |
mm |
3280 |
| Max. Digging Depth |
mm |
3208 |
| Max. Digging Radius |
mm |
5480 |
🌟
Why Choose This Model?
- Cutting-Edge Technology: Integrated smart engineering for superior performance and precision in landscaping.
- Built to Last: Crafted with premium materials and subjected to rigorous testing for demanding environments.
- Exceptional Efficiency: Advanced hydraulic systems designed to meet the high demands of modern excavation work.
The SH35 is built to deliver precision, power, and efficiency for projects of all sizes. Choosing our SH-Series means choosing equipment that works as hard as you do.
❓
Frequently Asked Questions
What is the operating weight of the SH35 excavator?
The total operating weight of the SH35 model is 3,800kg.
What type of engine is equipped in this mini excavator?
It is equipped with a high-performance Kubota D1703 engine, providing 18.2 KW of power.
Does it support different types of tracks?
Yes, it offers both rubber tracks for urban/surface-sensitive use and steel tracks for rough or off-road terrain.
Is the operator cabin comfortable for long hours?
Absolutely. The SH35 features a fully enclosed cabin with air conditioning, sound insulation, and ergonomic controls to reduce fatigue.
What is the maximum digging depth of the SH35?
The maximum digging depth is 3208mm, making it highly versatile for various utility and construction projects.
Can this excavator be used in tight urban spaces?
Yes, with a compact design and a tail swing radius of 870mm, it is optimized for work in confined areas and pipeline projects.
